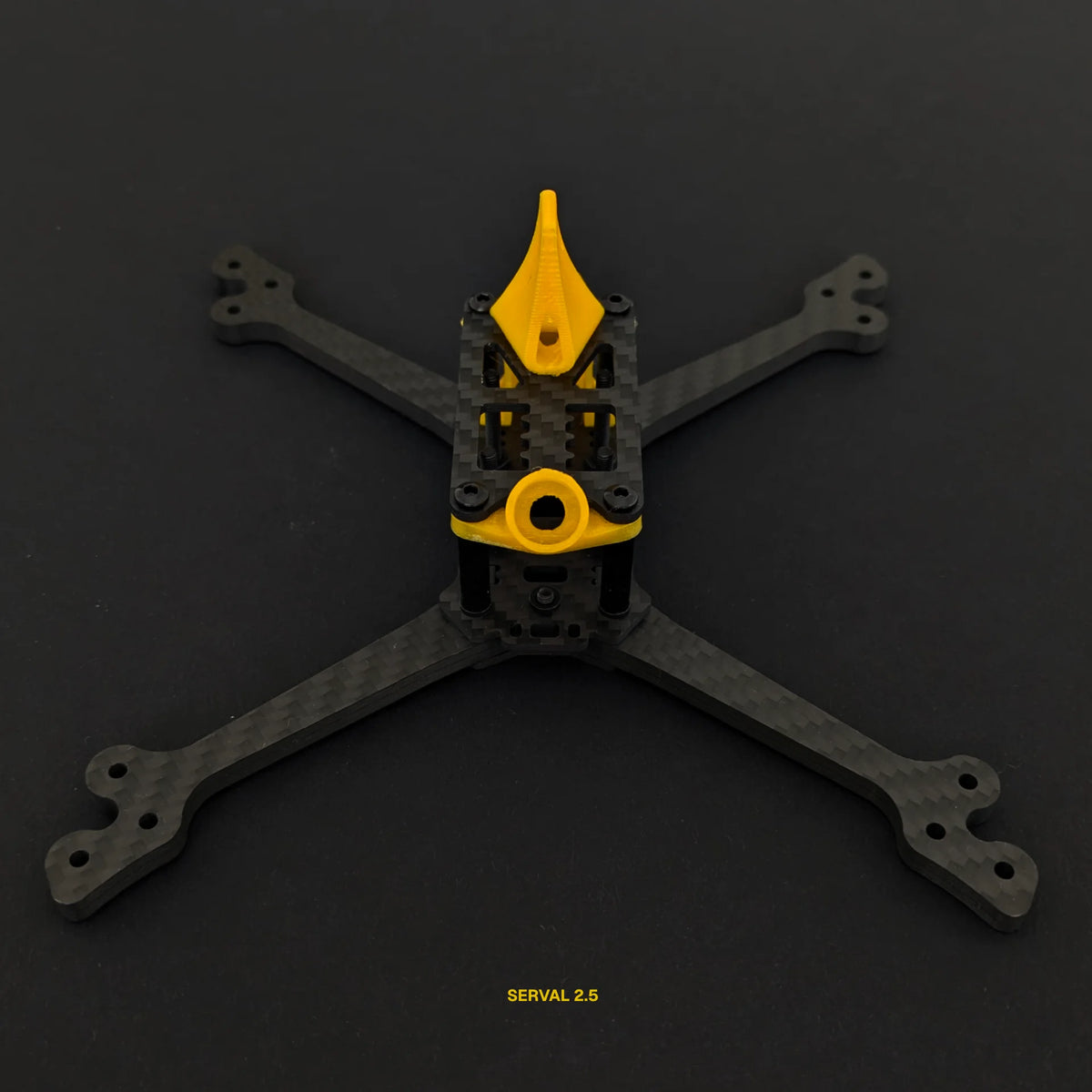

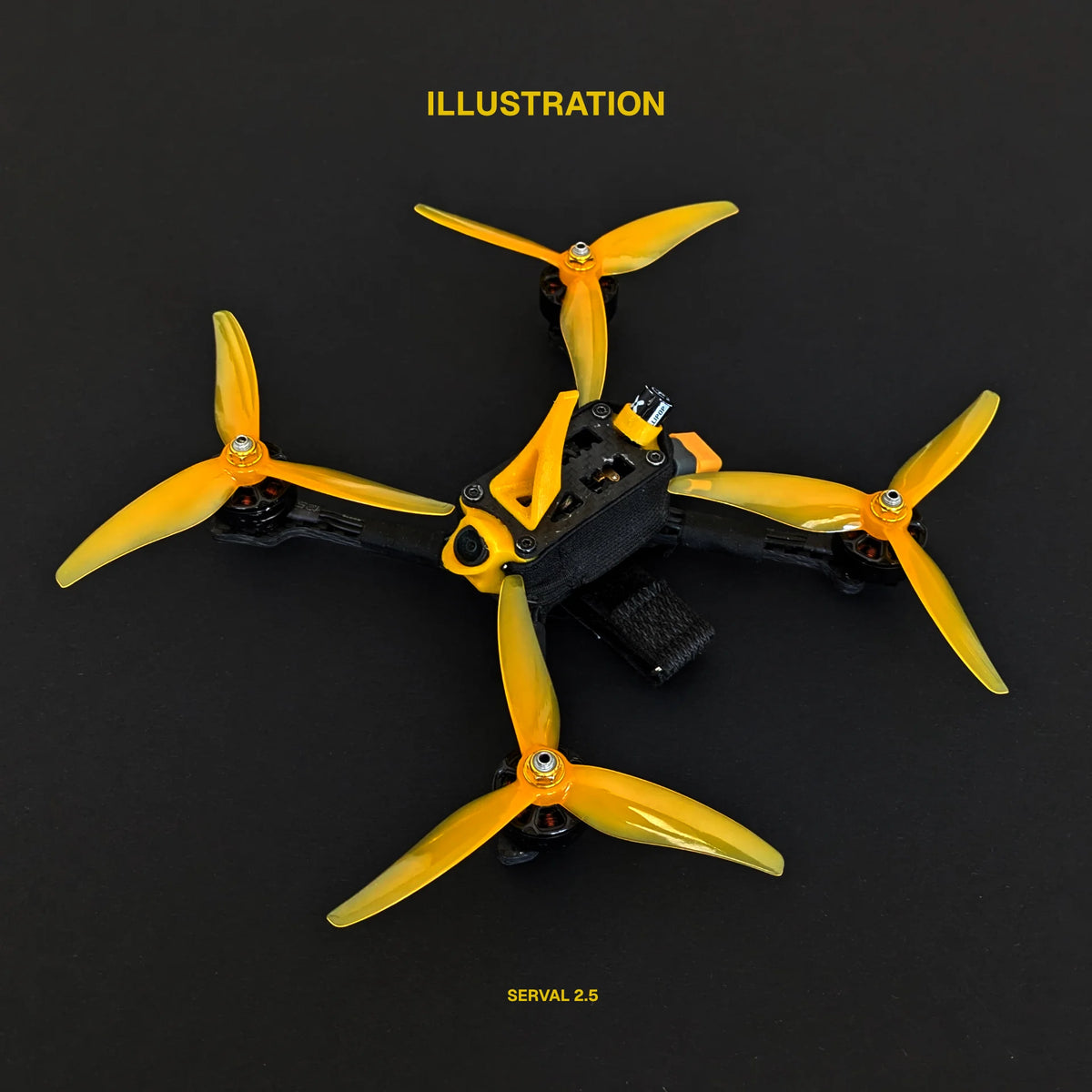

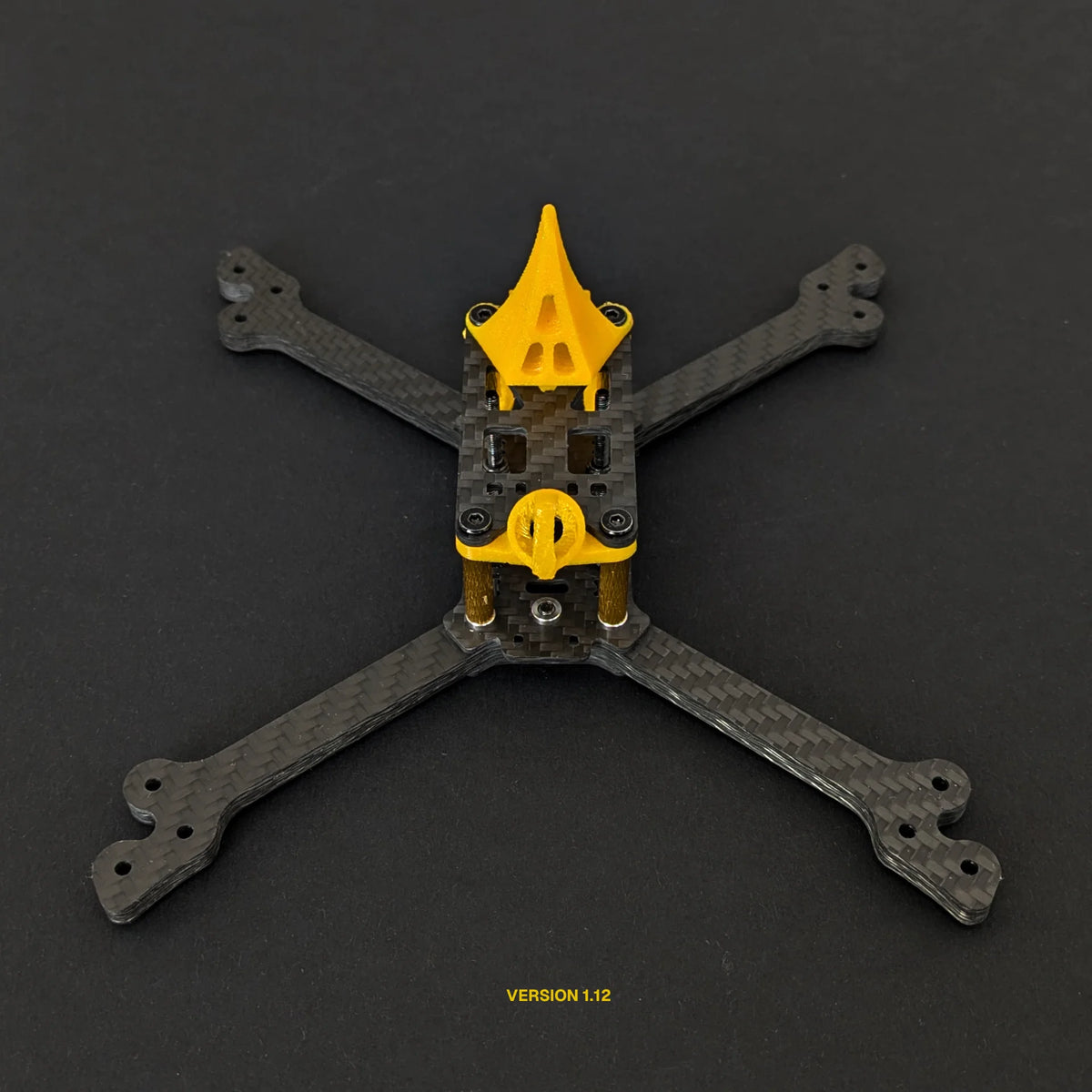

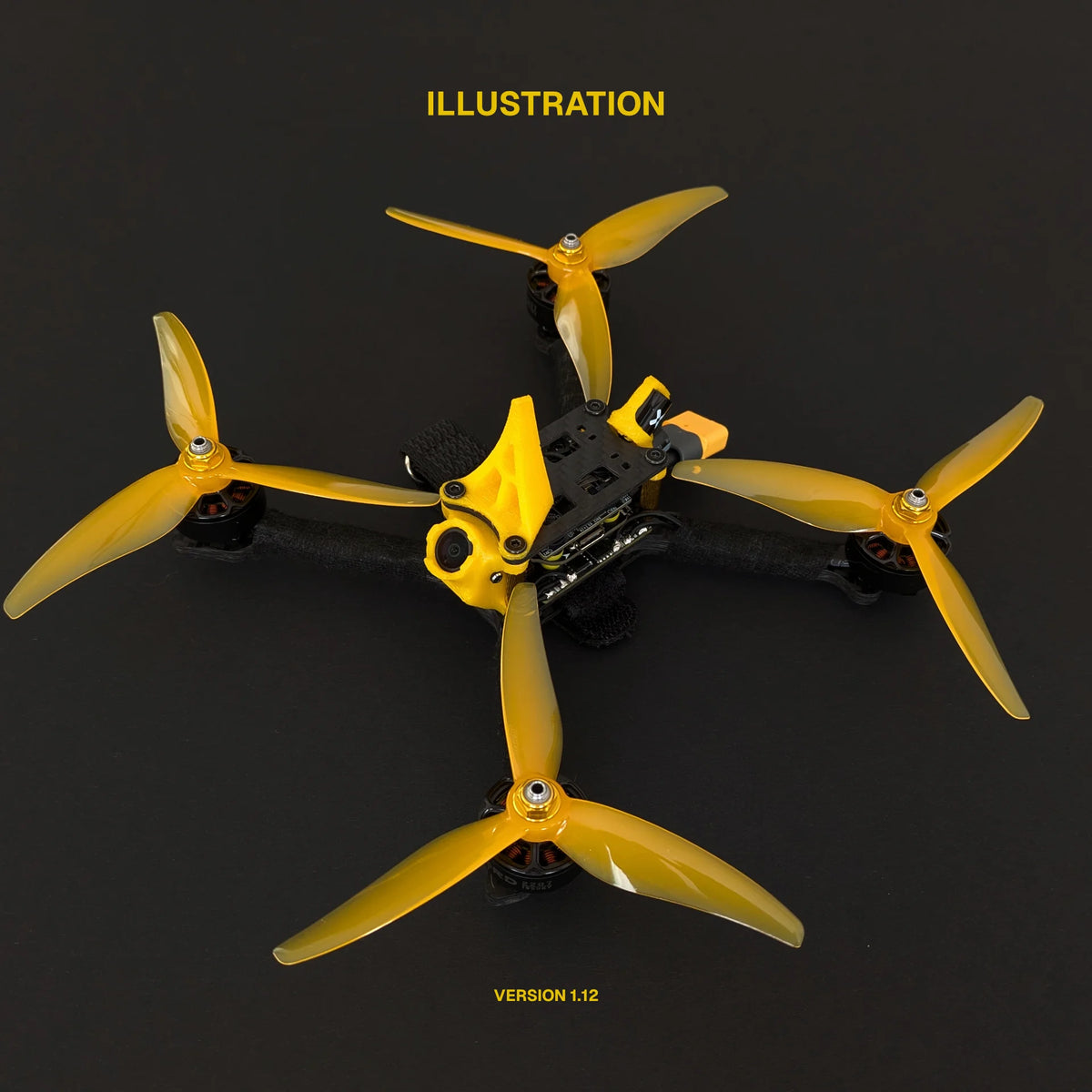

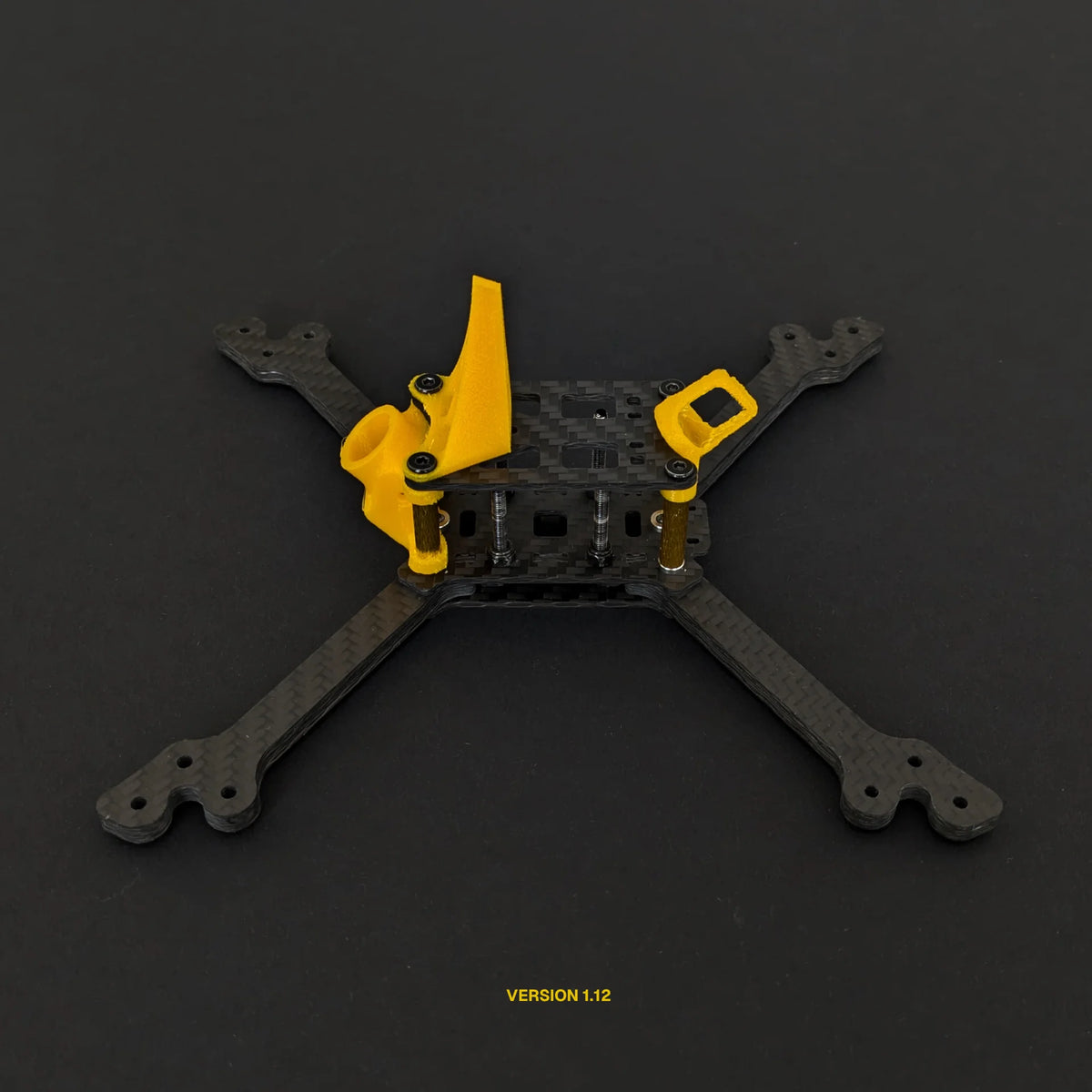

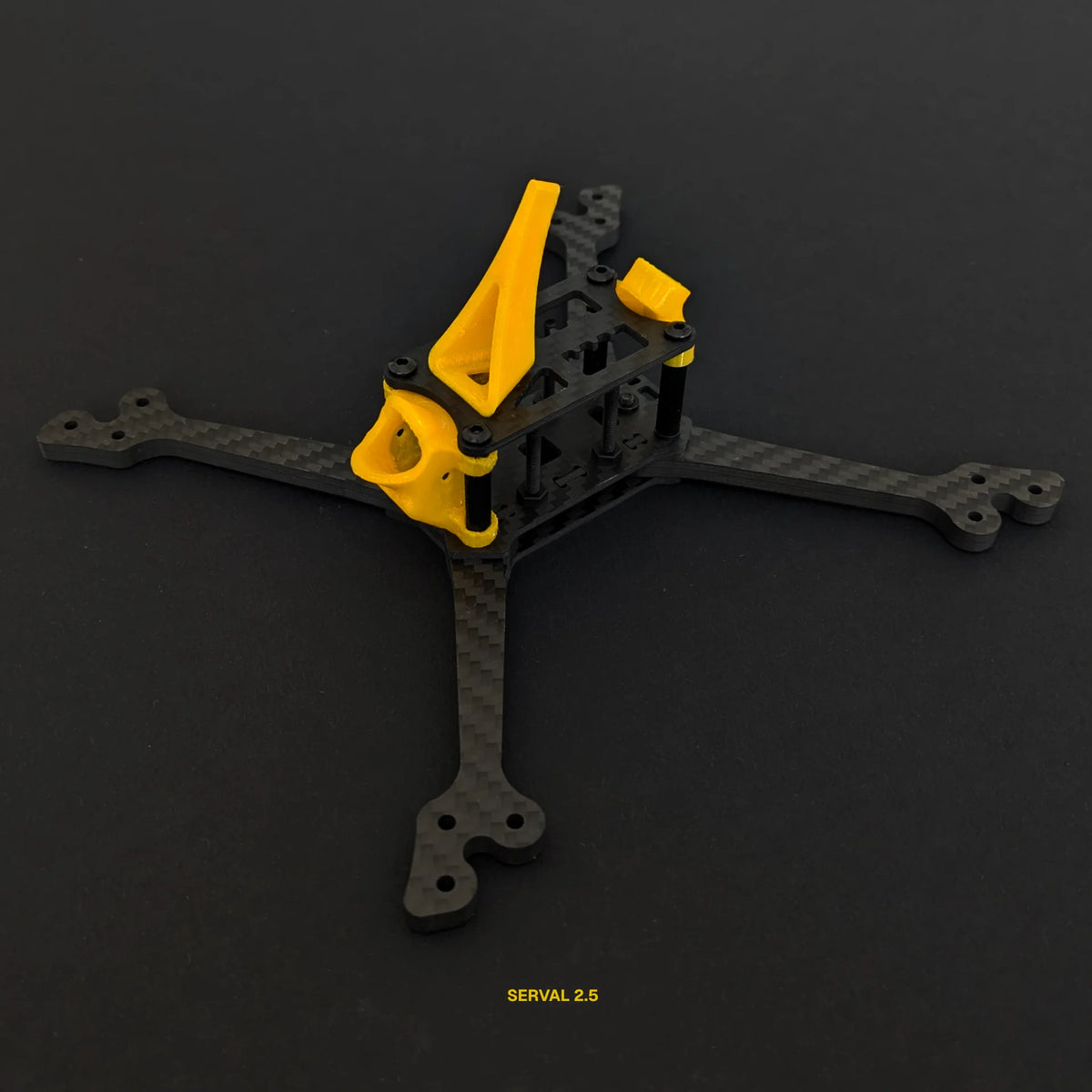

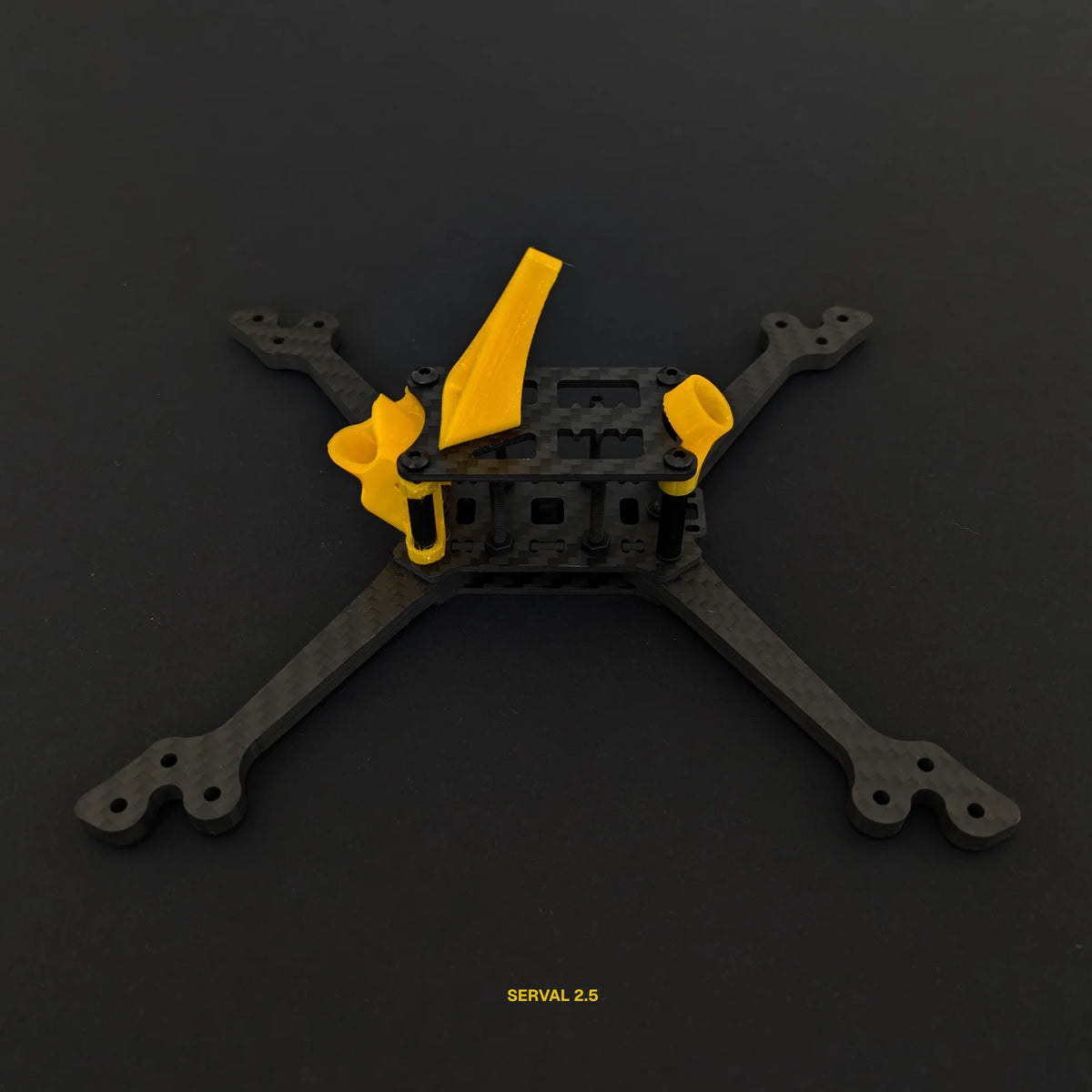

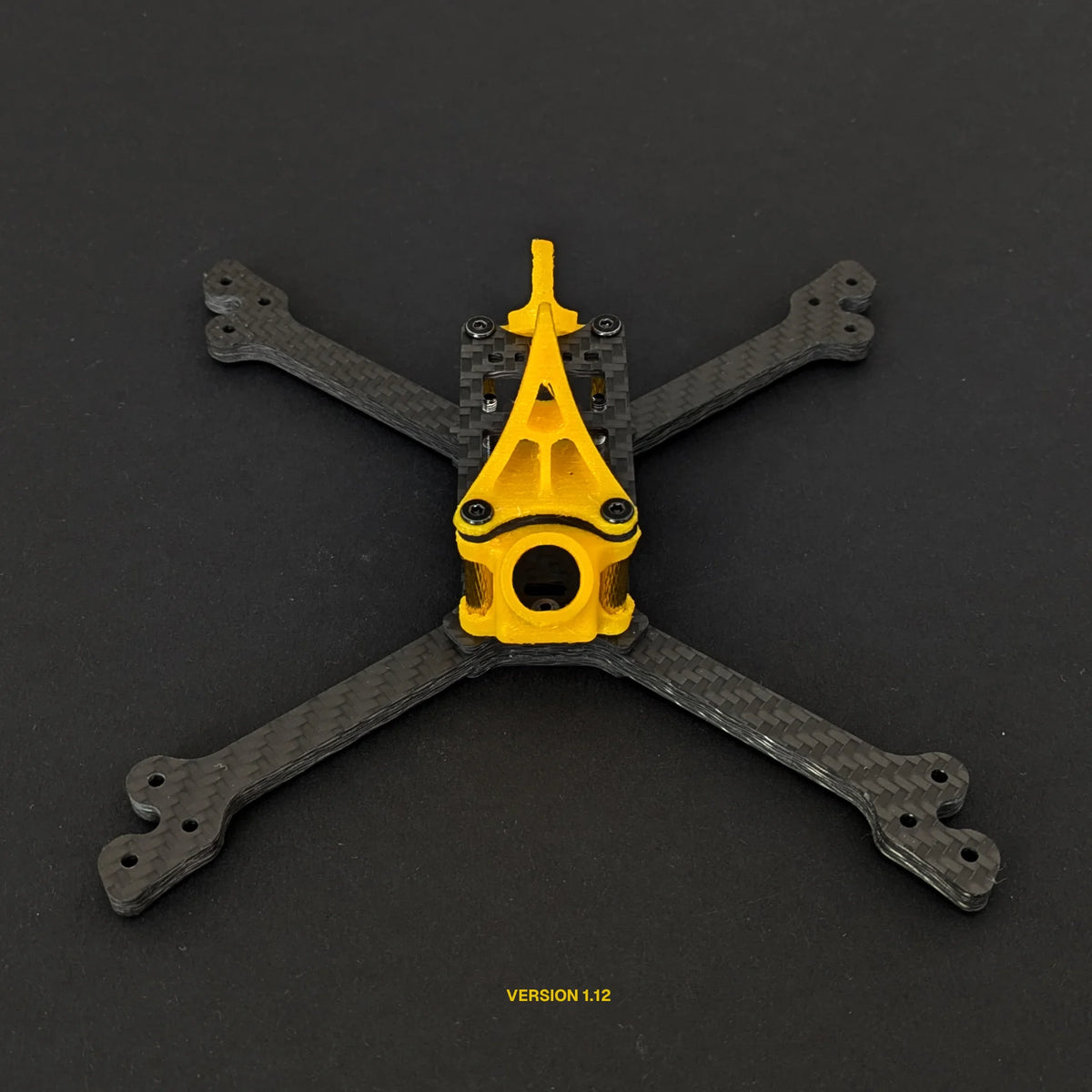

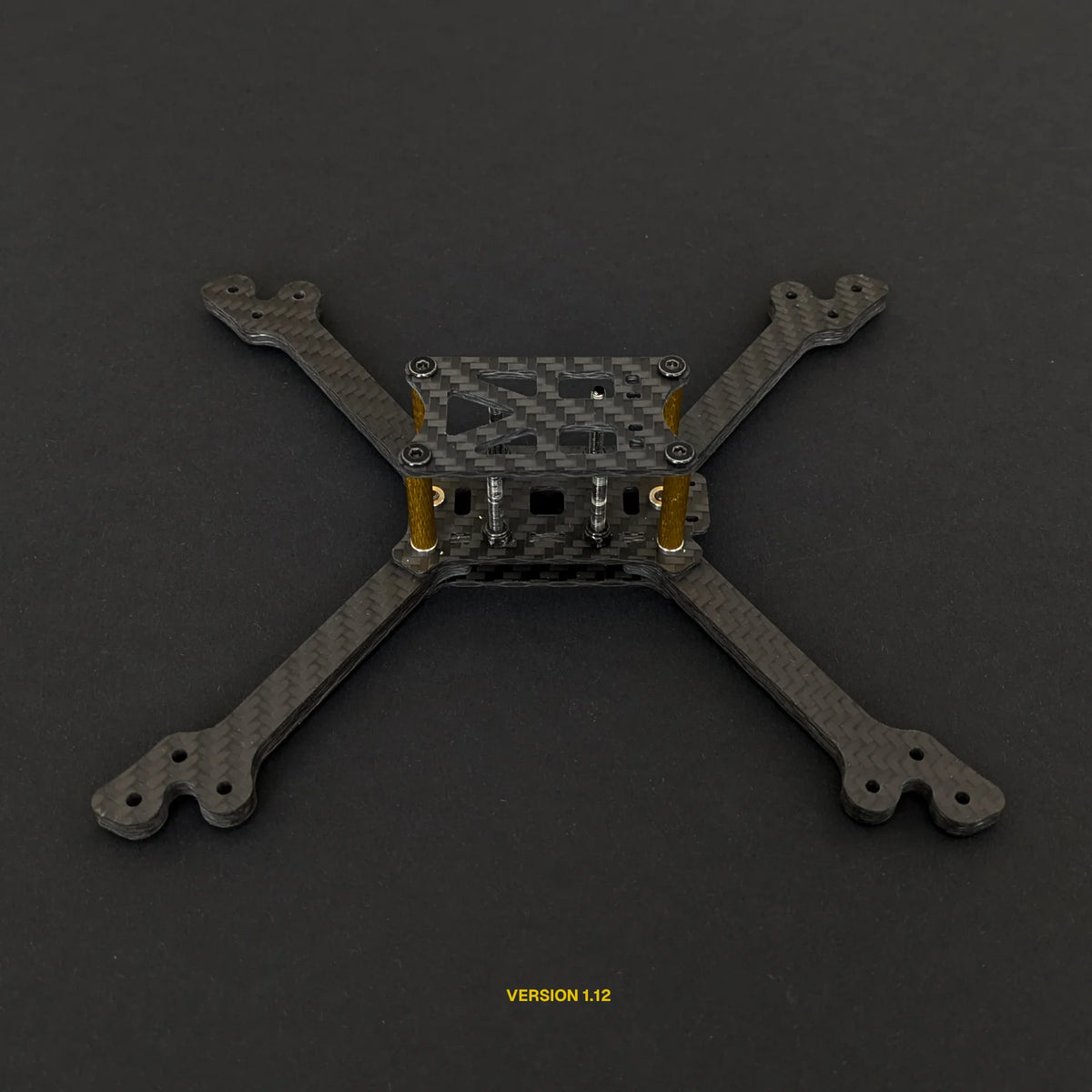

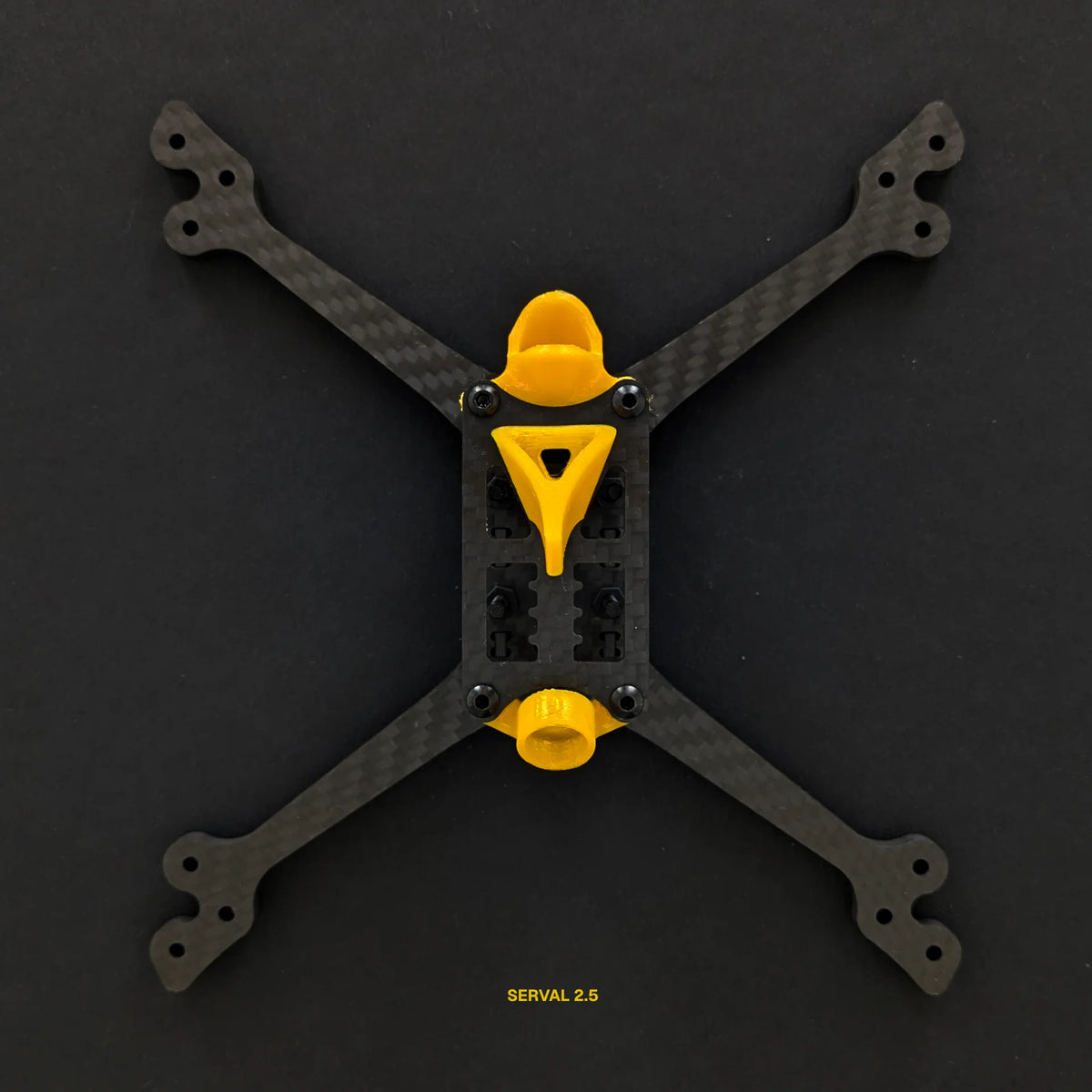

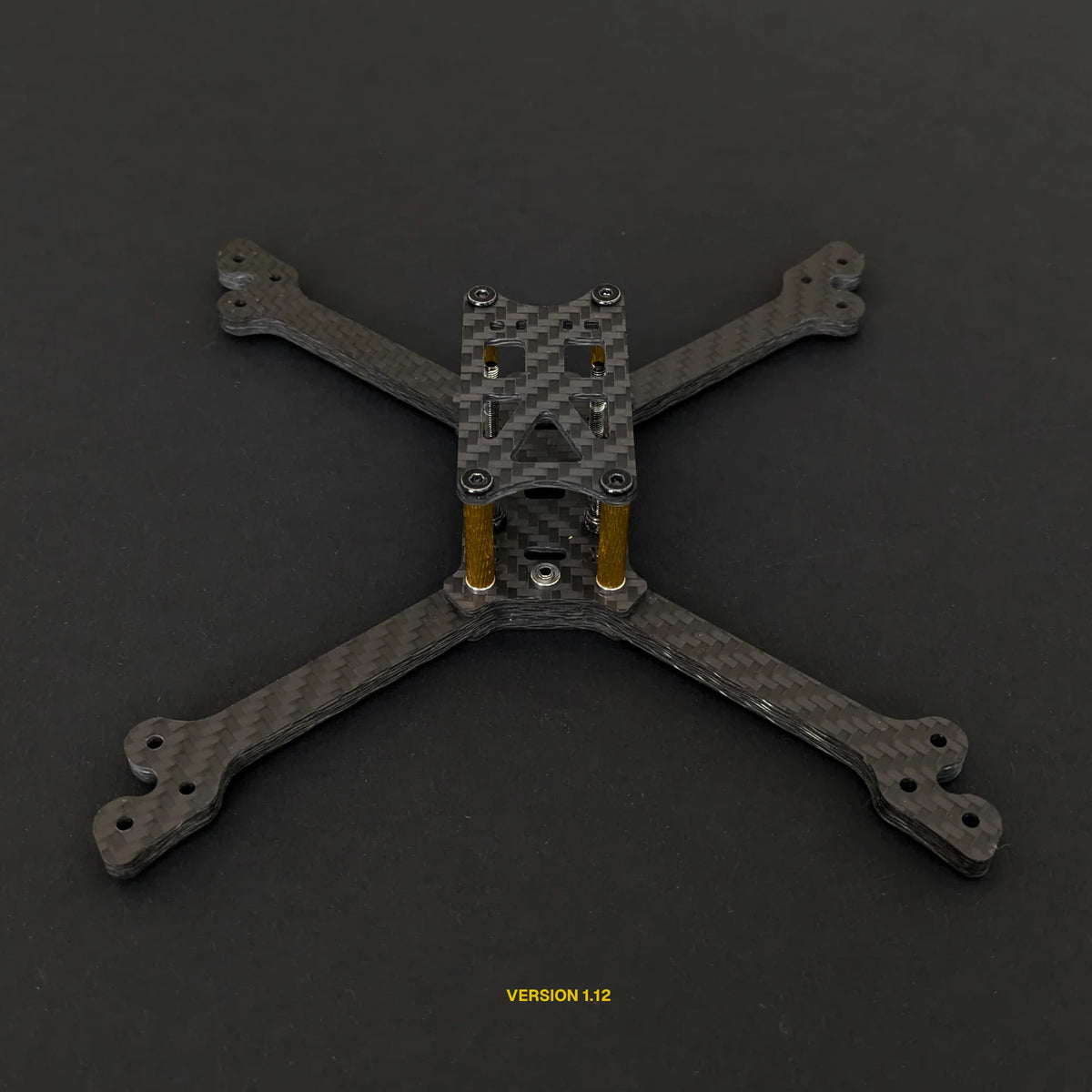

SERVAL 5-inch racing frame

The winner is thinner

Most frames keep the same thickness along the whole arm. The Serval 2.5's tapered arm is both tougher and lighter.

I ran simulations on 15 different arm shapes, and one of the lightest turned out to be the strongest. Hard to believe, right? I validated it in the lab and turns out, it’s true.

Practical and easy to build

The Serval’s wide top plate protects your VTX from costly midair hits. It has plenty of space to build. You can use a capacitor and even a stack saver.

And yet, a full Serval build with battery is only ~1% heavier than a MS25, Zigzag or LightSwitch Ultra.

Fully open source

The best way to buy a Serval is from the Tressym Shop (here), but you can also cut your own.

Modify it, remix it, even sell it if you want - just link back to this page!

This also guarantees fair prices everywhere, forever.

Fits all cameras and antennas we could think of

All camera mounts, VTX mounts and fins are open-source, editable, parametric Onshape files. Change them however you want. Go nuts.

The full list of parts:

• "Flame" fin (2.32g, recommended)
• "Delta" fin (2.6g)
• "Derby" fin (3.16g)
• Cam mount for HDZero Nano90, 45deg
• Cam mount for HDZero Nano90, 47deg
• Cam mount for HDZero Nano90, 50deg
• Cam mount for HDZero Nano90, 53deg
• Cam mount for HDZero Nano90 (with lens mod) or Foxeer Predator Nano, 45deg
• Cam mount for HDZero Nano90 (with lens mod) or Foxeer Predator Nano, 47deg
• Cam mount for HDZero Nano90 (with lens mod) or Foxeer Predator Nano, 50deg
• Cam mount for HDZero Nano90 (with lens mod) or Foxeer Predator Nano, 53deg
• VTX mount for Foxeer Lollipop
• VTX mount for Foxeer Lollipop Micro
• VTX mount for FlyfishRC Osprey
• VTX mount for TrueRC OCP
• VTX mount for TrueRC Singularity

You can download the TPU parts from Printables.

Something missing?
I’ll design it for you.

Specifications

Fits most 20x20 ESCs, including (but not limited to):

• Foxeer Reaper Slim 60A
• Flycolor Trinx G20
• Diatone Mamba F65_128K Mini
• Diatone Mamba 5 Reactor_66
• Sequre Blueson A1

Fits HDZero Nano 90 (including with 13mm lens upgrade) and most Nano analog cameras.

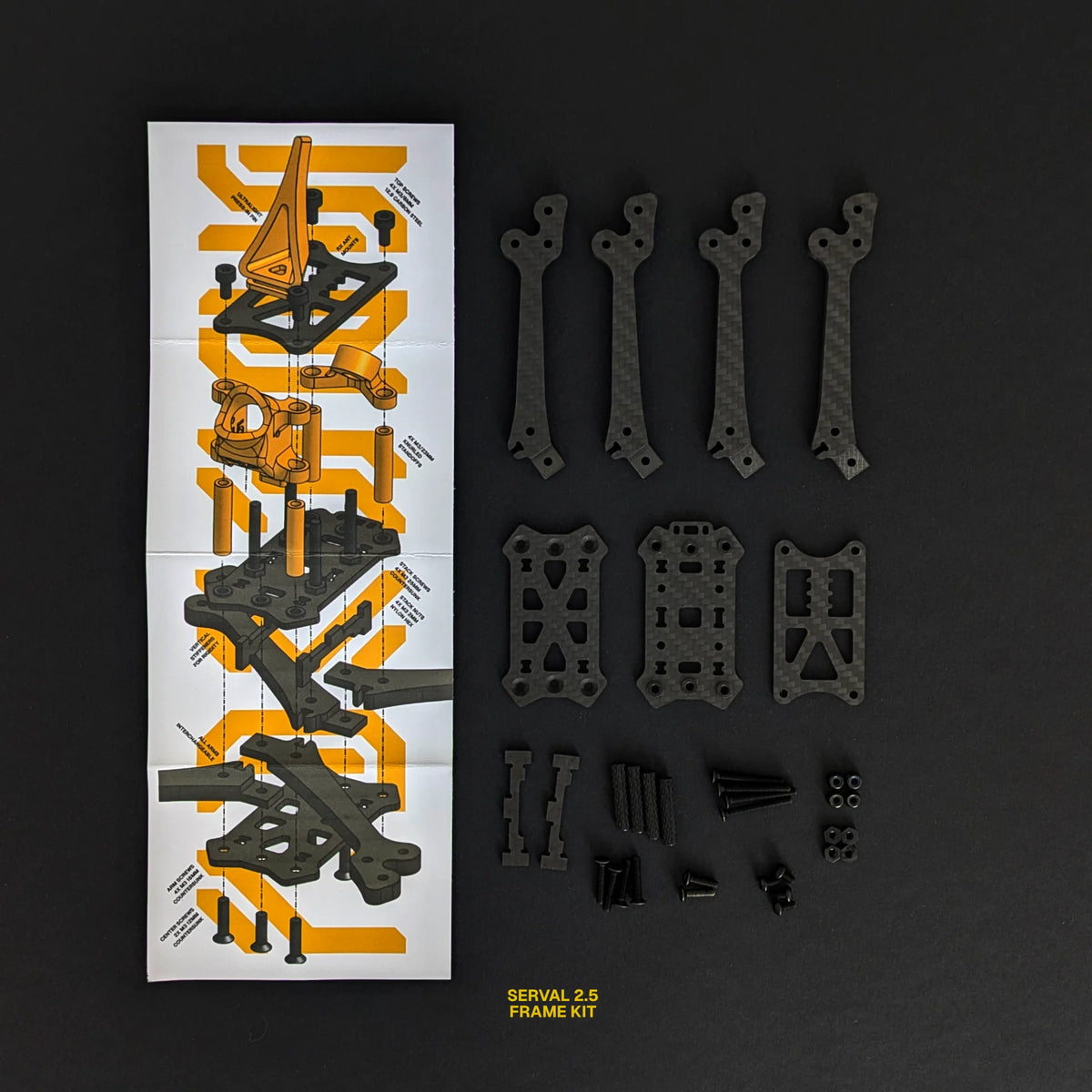

Frame kit contains:

• 4x Arms
• 1x Mid plate, with 6x M3 black carbon steel pressnuts pre-installed
• 1x Bottom plate
• 1x Top plate
• 2x Stiffeners
• 4x M3x23mm knurled aluminium standoffs, black
• 4x M3x25mm countersunk stack screws, grade 12.9 black carbon steel
• 4x M3 steel+nylon hex self-locking nuts, weight: 1.66g
• 4x M3 nylon nuts, weight: 0.22g
• 4x M3x16mm countersunk arm screws
• 2x M3x12mm countersunk center screws
• 4x M3x6mm top plate screws
• Decorative leaflet with build tips and assembly diagram. Each order personally signed.

Arm kit contains:

• 4x Arms

Front/back brace kit contains:

• 2x Front/back braces

Side brace kit contains:

• 2x Side braces

Any other questions? Let me know!
